The suction and discharge connections of 150 x 150 mm, our pumps guarantee a strong flow capacity. You can choose between a closed-type impeller with a mechanical seal for reliable performance or an open-type impeller for specific applications. The priming tank is made from durable materials like aluminum, ensuring resilience and longevity
We provide tailored solutions to meet your specific requirements, making sure each pump is perfectly suited for its intended use. By offering a wide range of customization options, we ensure our pumps meet the unique demands of each application, delivering effective and reliable solutions for diverse dewatering needs.
| Pump Specification | Material of Construction | ||
|---|---|---|---|
| Brand | RACORS | Volute Casing | High Grade cast Iron, SS - 304 |
| Pump Model | Racors 150 VS | Pump Shaft | Stainless steel, SS – 304 |
| Vacuum Capacity | 70 cfm | Impeller | Stainless Steel, SS – 304, Bronze |
| Max. Water Flow | 350 m3/hr | Stuffing Box | Stainless Steel, SS - 304 |
| Suction x Discharge | 6” x 6” (150 mm x 150 mm) | Priming Tank | Aluminum |
| Max. Head | 40 mtr. | Fuel tank capcity | 24 hours / 160 liters |
| Max. Suction lift | 9 mtr. | ||
| Max. Solid handling | 2” / 3" | ||
| Max Operating Temperature | 80°C | ||
| Mounting Options Skid, Silent Canopy, Towable Trolley, Portable two / four wheel chassis | |||
| Engine Specification | Weight & Dimensions | ||
| Engine | KIRLOSKAR HA 394, 3 Cylinder, Air cooled Diesel Engine | Weight (kg) | 950 |
| Capacity | 38 HP | Dimension (cm) | 250 x 130 x 147 |
| Speed | 1800 RPM | 20/40 feet container | 6/12 |
| Warranty: Against Manufacturing Defect For 18 Months | |||
| Special Features : Anti corrosive epoxy zinc phosphate base coating and epoxy scratch resistant Anti corrosive ceramic top coat painting for the pump | |||
| 24-Hour Non-Stop Continuous Functioning | |||
| 24/7 After Sales Support: Available In Middle East & North African Countries | |||
Core Features
Vacuum- Assisted Self- Priming
Vacuum-assisted self-priming removes air from the suction line, enabling automatic start and continuous operation without manual priming.
Air-Cooled Diesel Engine
An air-cooled diesel engine uses airflow to dissipate heat, eliminating the need for a radiator or liquid cooling system.
Heavy-Duty Skid or Trailer Mounting
Built for durability and easy transport, ensuring stable operation in tough environments.
High Flow Capacity
Delivers efficient, high-volume water removal for demanding dewatering applications.
Low Maintenance Design
Engineered for reliability with minimal upkeep and reduced downtime.
Custom Pump Manufacturing
Tailored solutions designed to meet specific project requirements and operating conditions.
Application
Dewatering pumps play a vital role in removing unwanted water from various environments, ensuring safe, dry, and efficient operations across industries.
Contact Us
Reach out for any inquiries, support, or to discuss how we can meet your industrial needs.
- +91 72000 76755
- info@racors.in
Product Range 2" to 24"
We’re Always Here to Connect — Looking Forward to Your Response!
Ready Stock Available
24/7 After Sales Support
Frequently Asked Questions

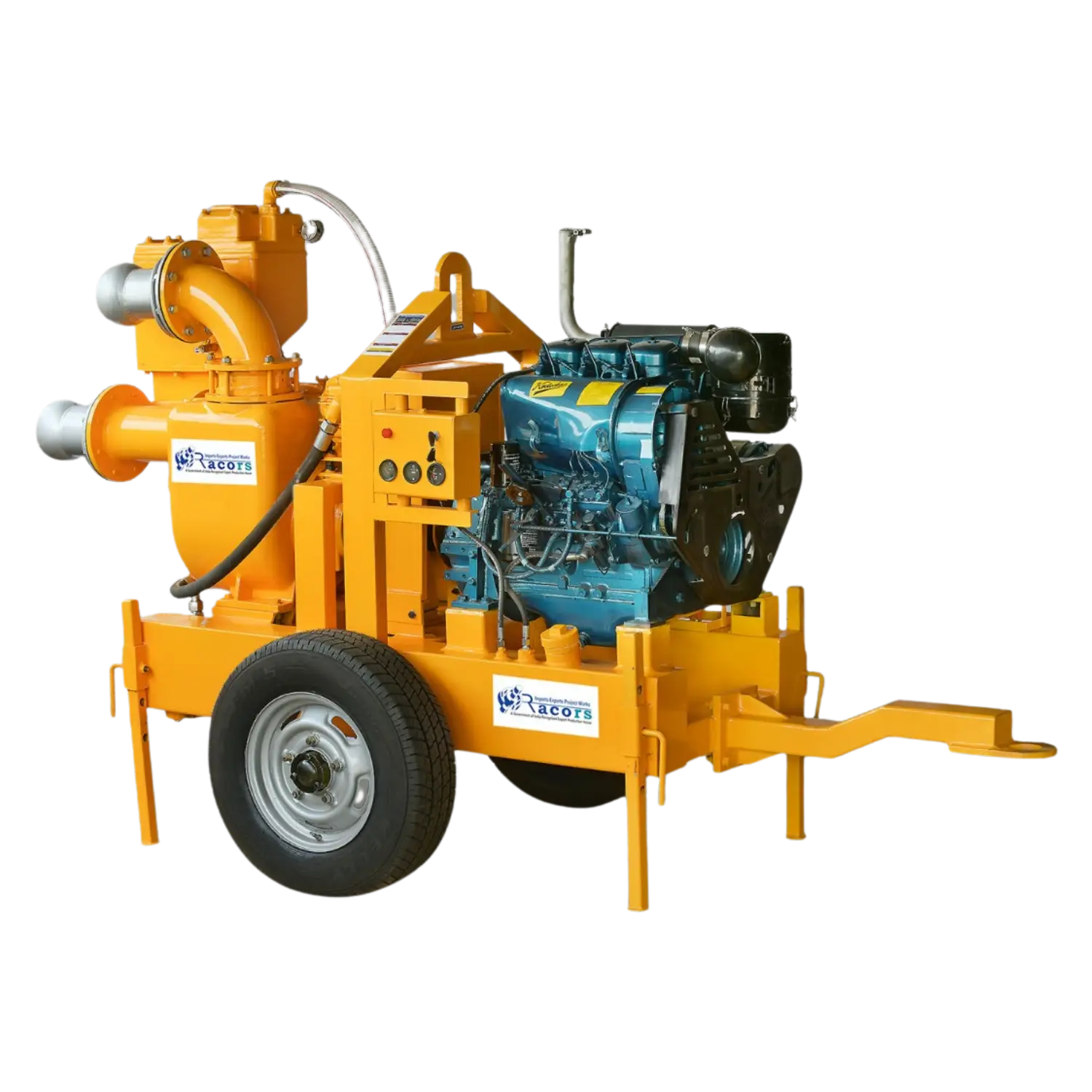

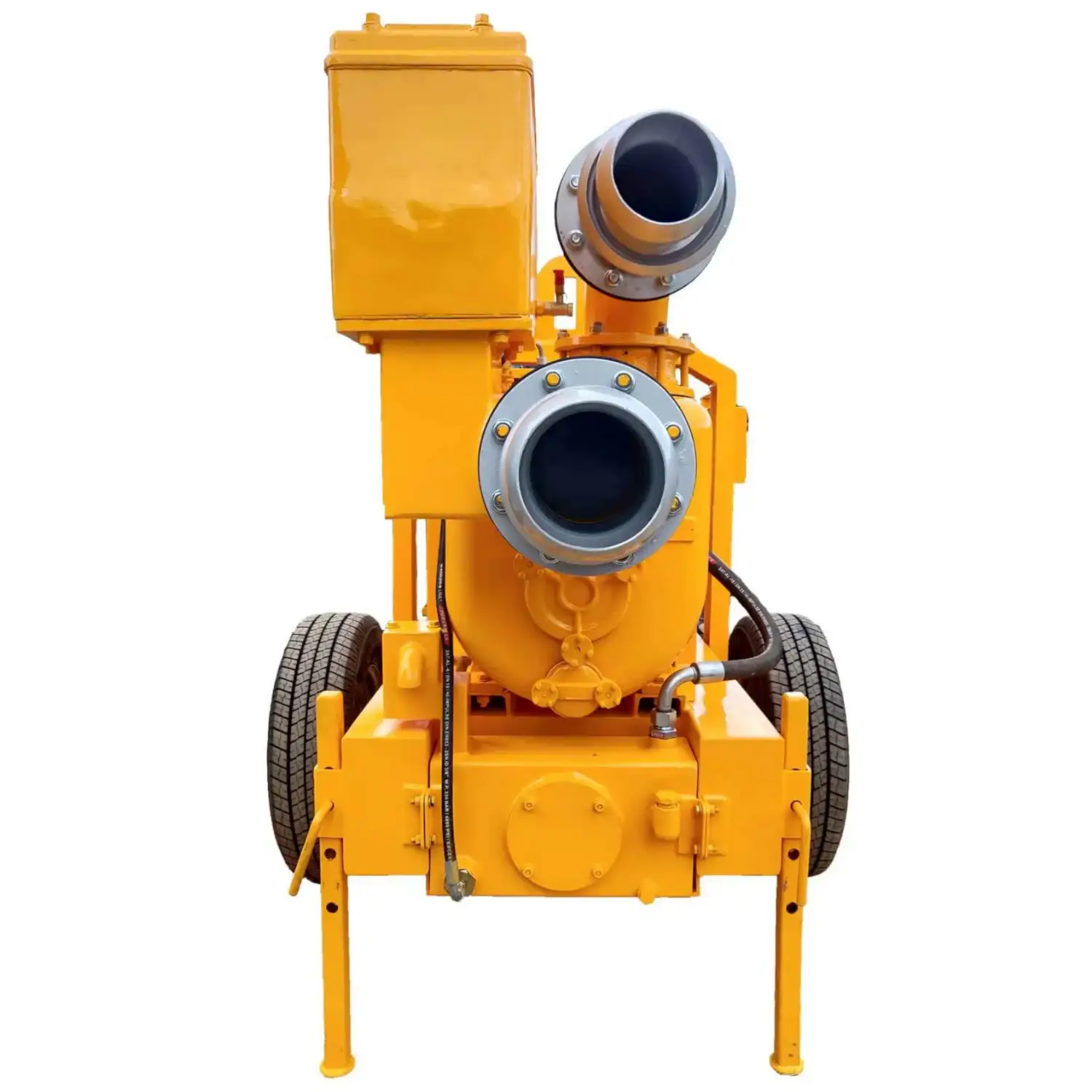

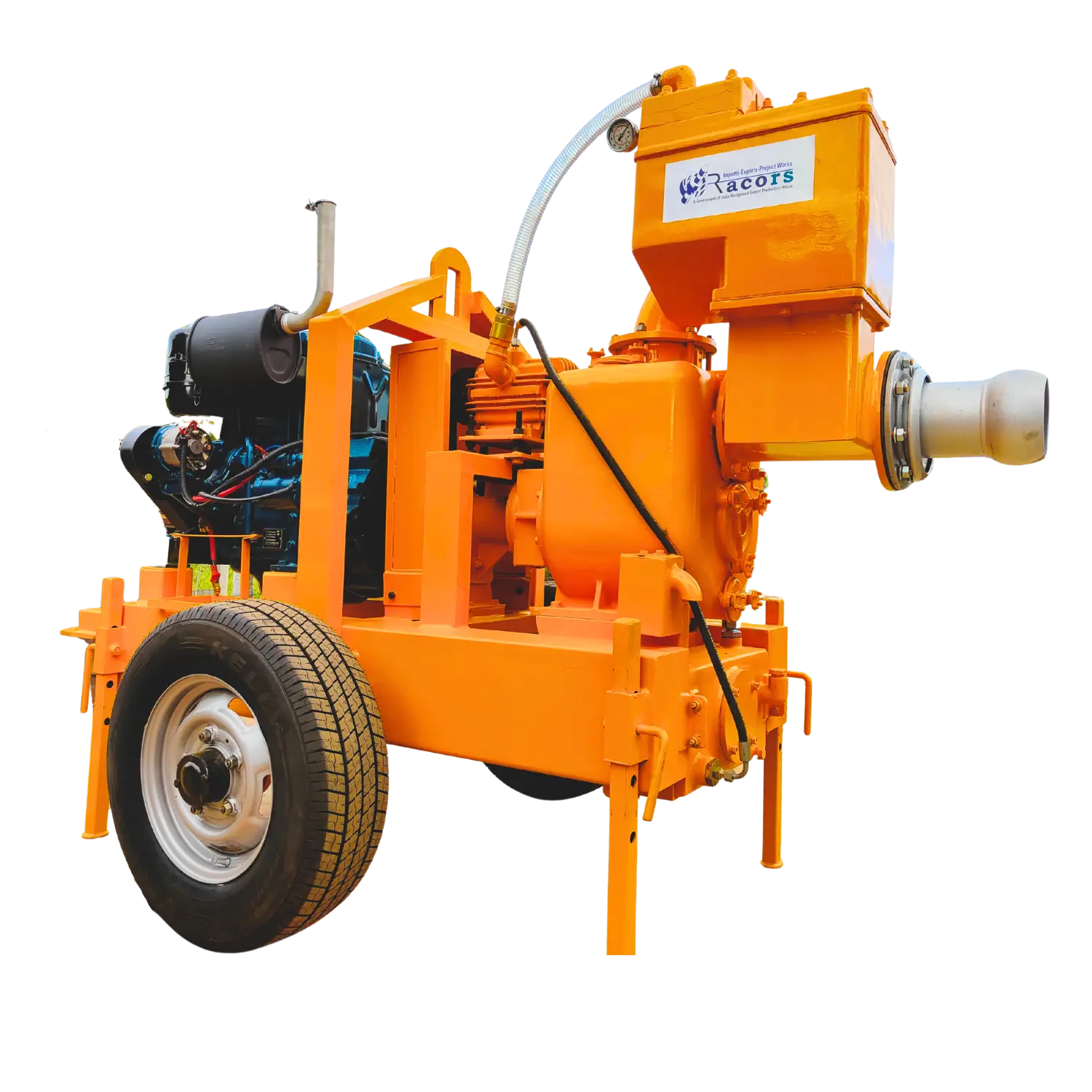

A 6-inch VS pump is a self-priming centrifugal dewatering pump with 150 mm suction and discharge, designed to handle dirty water, sludge, and solids in demanding environments.
It is a self-priming centrifugal pump with open or semi-open impeller, specially built for solids handling and dewatering applications.
Yes, thanks to the open impeller design, it can handle:
- Sand
- Mud
- Sludge
- Suspended solids up to ~76 mm
- Yes, VS pumps can pump air-liquid mixtures, making them highly effective for dewatering with air entrainment.
Yes, Hudig pumps are vacuum-assisted self-priming, enabling fast and reliable startup without manual priming.
Available in:
- Cast iron
- Hardened cast iron
- Stainless steel
These ensure durability in abrasive and corrosive environments.
No, features include:
- Simple construction
- Easy inspection access
- Replaceable wear parts
This results in low maintenance and long service life.
